Small Caliber Ammunition
.50 Caliber
UDC located in Florida and Missouri, manufactures .50 caliber variants for commercial, government, and law enforcement customers.
CALIBER: Caliber .50 BMG (12.7x99mm)
CARTRIDGE: M33 Ball/ M17 Trace Linked
FUNCTION: Training or duty. Trace to 1460 meters BULLET WT. (GRAINS): M33 2.8 g/660 gr FMJ BT
BULLET EXTRACTION: Minimum of 90 Kg (200 lbs.)
TIP ID: M33-None, M17-Red
CASE: Brass
PRIMER: Boxer, M50, Non-Corrosive
VELOCITY: 855 +/- 9 m/s (24 m from muzzle) @ 21 +/-2 C or 2905 +/-30 ft/s (78 ft from muzzle) @ 70 +/-2 F ACCURACY: Average Mean Radii Maximum: 30.5 cm @ 548 m (12 in @ 600 yds)
CHAMBER PRESSURE: Maximum: 448 Mpa @ 21 C (65,000 psi @ 70 F)
OPERATING TEMP: -54 C to 52 C (-65 F to 125 F)
PACKAGING: 100rds 4:1 Linked/ M2A1, 200rds/Wood Crate, 9,600rds/ Pallet
12.7x99 (.50 cal) M33/M17 4:1
Specifications:
• MIL-DTL-10190F/1318D
• MIL-STD-636
• MIL-STD-1916
• Drawing: 7553097
• Drawing: 7672165
PRIMER SEALANT: Yes
CASE MOUTH SEALANT: Yes
HEADSTAMP: UDC manufacturer symbol and year of manufacture.
UDC USA, Inc., located in Florida and Missouri, produces ammunition for all branches of the US Military, USSOCOM, Civilian market and State Department approved customers.
CALIBER: .50 BMG (12.7x99mm)
CARTRIDGE: M33 Match
BULLET WT. (GRAINS): 660 gr FMJ
BULLET EXTRACTION: Minimum of 90 Kg (200 lbs.)
TIP ID: None
PRIMER: Boxer, 50M, Non-Corrosive
VELOCITY: avg 2905 ± 30 fps at 78 feet; SD ≤ 36 fps
ACCURACY: Average Mean Radii Maximum: 30.5 cm @ 548 m (12 in @ 600
yds.), objective 6 in @ 600 yds.
CHAMBER PRESSURE: avg ≤ 65 Kpsi @ 70 F
OPERATING TEMP: -54 C to 52 C (-65 F to 125 F)
PACKAGING: 120rds/M2A1 can, 240rds/Wood Crate, 11,520rds/Pallet,
3900 lbs./Pallet, Pallet 40x48in.
OPTION: Linked
MANUFACTURED TO U.S. MILITARY
Specifications:
• MIL-DTL-1019F
• MIL-STD-636
• MIL-STD-1916
• Drawing: 7553097
PRIMER SEALANT: Yes
CASE MOUTH SEALANT: Yes
HEADSTAMP: UDC manufacturer symbol and year of manufacture.

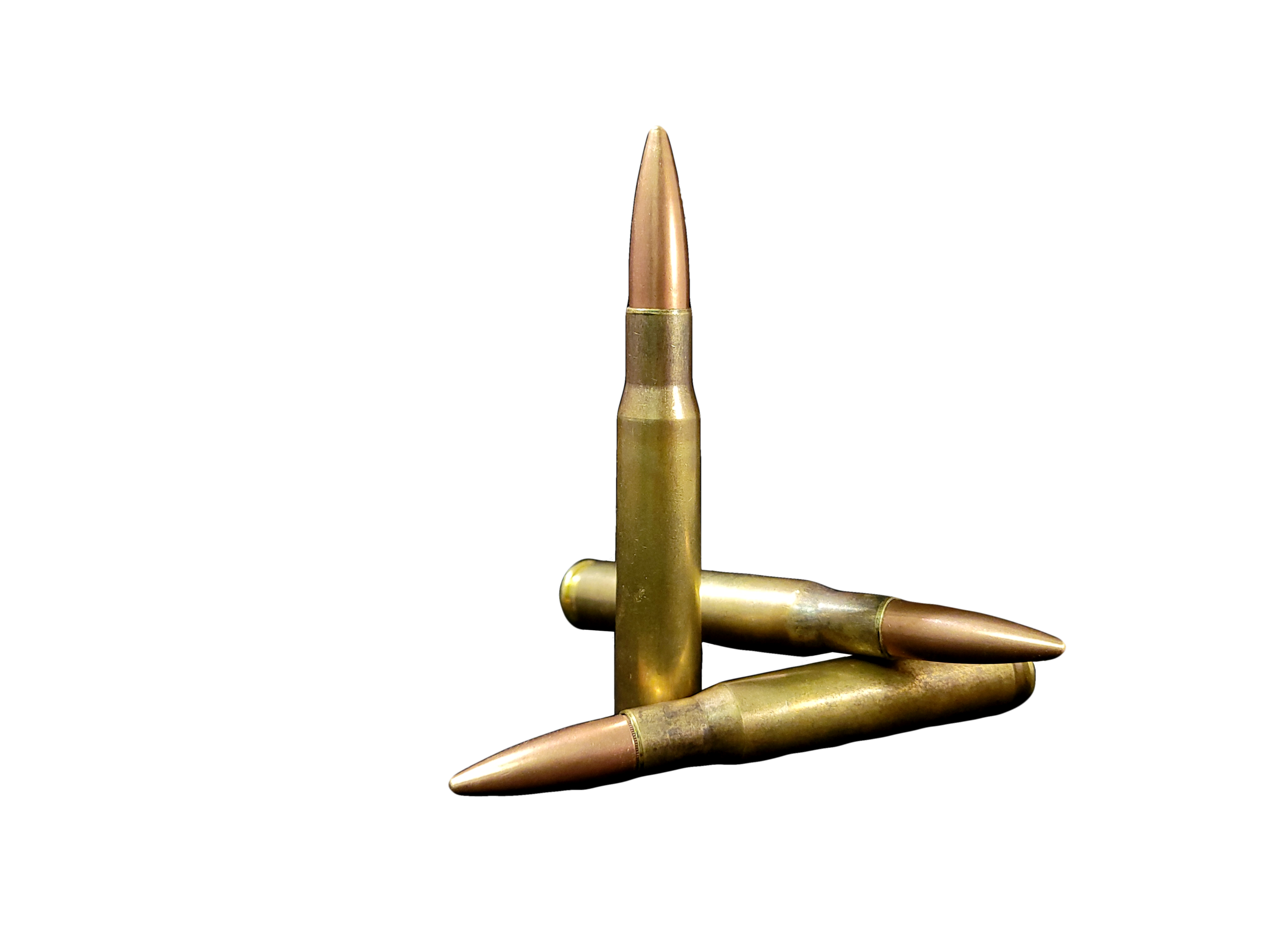

12.7x99 (.50 Cal) M33 Match
UDC manufactures small and medium caliber ammunition for all branches of the US Military, USSOCOM, the Civilian market and State Department approved customers.
CALIBER: .50 BMG (12.7x99mm)
CARTRIDGE: M2A1 Dummy, Drill Inert (DDI), Solid Aluminum
FUNCTION: The M2A1 is an inert cartridge used general familiarization with ammunition and associated weapon systems, initial training, and weapon system cycling
APPEARANCE: Cartridge body has 6 flutes for identification purposes, silver in color with option of color anodize.
CARTRIDGE WT. (GRAINS): 880-1100 grains
OPERATING TEMP: -54 C to 52 C (-65 F to 125 F)
PACKAGING: Bulk-120rds/M2A1, 240rds/Wood Crate, 11,520rds/Pallet, Pallet 40x48in. Linked-100rds/M2A1, 200rds/Wood Crate, 9,600rds/Pallet, Pallet 40x48 in. OPTIONS: MIL-Spec or Commercial
MANUFACTURED TO U.S. MILITARY SPECIFICATIONS:
• MIL-PRF-32609
• MIL-STD-636
• MIL-STD-1916
• Drawing: 13068238
12.7x99 (.50 Cal) M2A1 Dummy Cartridge
12.7x99 (.50 Cal) M8 API
UDC manufactures small and medium caliber ammunition for all branches of the US Military, USSOCOM, the Civilian market and State Department approved customers.
CALIBER: .50 BMG (12.7x99mm)
CARTRIDGE: M8 Armor Piercing Incendiary
FUNCTION: Battle carry
BULLET WT. (GRAINS): 662.5gr API
BULLET EXTRACTION: Minimum of 90 Kg (200 lbs)
TIP ID: Grey
CASE: Brass
PRIMER: Boxer, 50M, Non-Corrosive
ARMOR PENETRATION: 7/8” at 100 yards (2.2cm at 91m)
VELOCITY: avg 2905 ± 30 fps at 78 feet; SD ≤ 36 fps
ACCURACY: Average Mean Radii Maximum: 30.5 cm @ 548 m (12 in @ 600 yds)
CHAMBER PRESSURE: avg ≤ 65 Kpsi @ 70 F
OPERATING TEMP: -54 C to 52 C (-65 F to 125 F)
PACKAGING: 120rds/M2A1, 240rds/Wood Crate, 11,520/Pallet, 40x48in. 3900 lbs/1769 kg per Pallet
MANUFACTURED TO U.S. MILITARY
Specifications:
• MIL-DTL-3066
• MIL-STD-636
• MIL-STD-1916
• Drawing: 7670228
PRIMER SEALANT: Yes
CASE MOUTH SEALANT: Yes
HEADSTAMP: UDC manufacturer symbol and year of manufacture.
12.7x99 (.50 Cal) M20 APIT
UDC manufactures small and medium caliber ammunition for all branches of the US Military, USSOCOM, the Civilian market and State Department approved customers.
CALIBER: .50 BMG (12.7x99mm)
CARTRIDGE: M20 Armor Piercing Incendiary - Trace
FUNCTION: Battle Carry. Trace to 1600 yards
BULLET WT. (GRAINS): 619gr APIT
BULLET EXTRACTION: Minimum of 90 Kg. (200 lbs.)
TIP ID: Grey/Red CASE: Brass
PRIMER: Boxer, 7645339 (50M), MIL-P-46610, wt 19.1 grains approx., Non-Corrosive
PENETRATION: 7/8” armor (MIL-S-13812) at 100 yards
VELOCITY: Avg 2905 ± 30 fps at 78 feet; SD ≤ 36 fps
ACCURACY: Average Mean Radii Maximum: 30.5 cm @ 548 m (12 in @ 600 yds.)
CHAMBER PRESSURE: Average (60,500 psi @ 70 F) OPERATING TEMP: -54 C to 52 C (-65 F to 125 F)
PACKAGING: 120rds/M2A1, 240rds/Wood Crate, 11,520rds/Pallet, 3,900 lbs/Pallet, Pallet 40x48in.
OPTION: Linked
MANUFACTURED TO U.S. MILITARY
Specifications:
• MIL-DTL-3066
• MIL-STD-636
• MIL-STD-1916
• Drawing: 7670228
PRIMER SEALANT: Yes
CASE MOUTH SEALANT: Yes
HEADSTAMP: UDC manufacturer symbol and year of manufacture.
