The M781 40mm Chalk Round

the M781 40mm Chalk round was designed to be an area weapon in the 1960’s. Since then, technologies have emerged to allow innovations in the round, allowing the 40mm platform to serve purposes beyond their original intended use. Now, the M781 is developed with a signal dye in the nose cone (referred to as an Ojive/Ogive) to train soldiers to fire the M433 Low Velocity HEDP round. These new M781 rounds release orange dye to provide instant feedback to the trainee.

UDC produces M781 40mm Low Velocity rounds for government and commercial sale for trainers and 40mm enthusiasts alike.

Description:

• NSN: 1310-01-211-8073

• Nomenclature: 40mm M781, 40mm Practice Cartridge Low Velocity

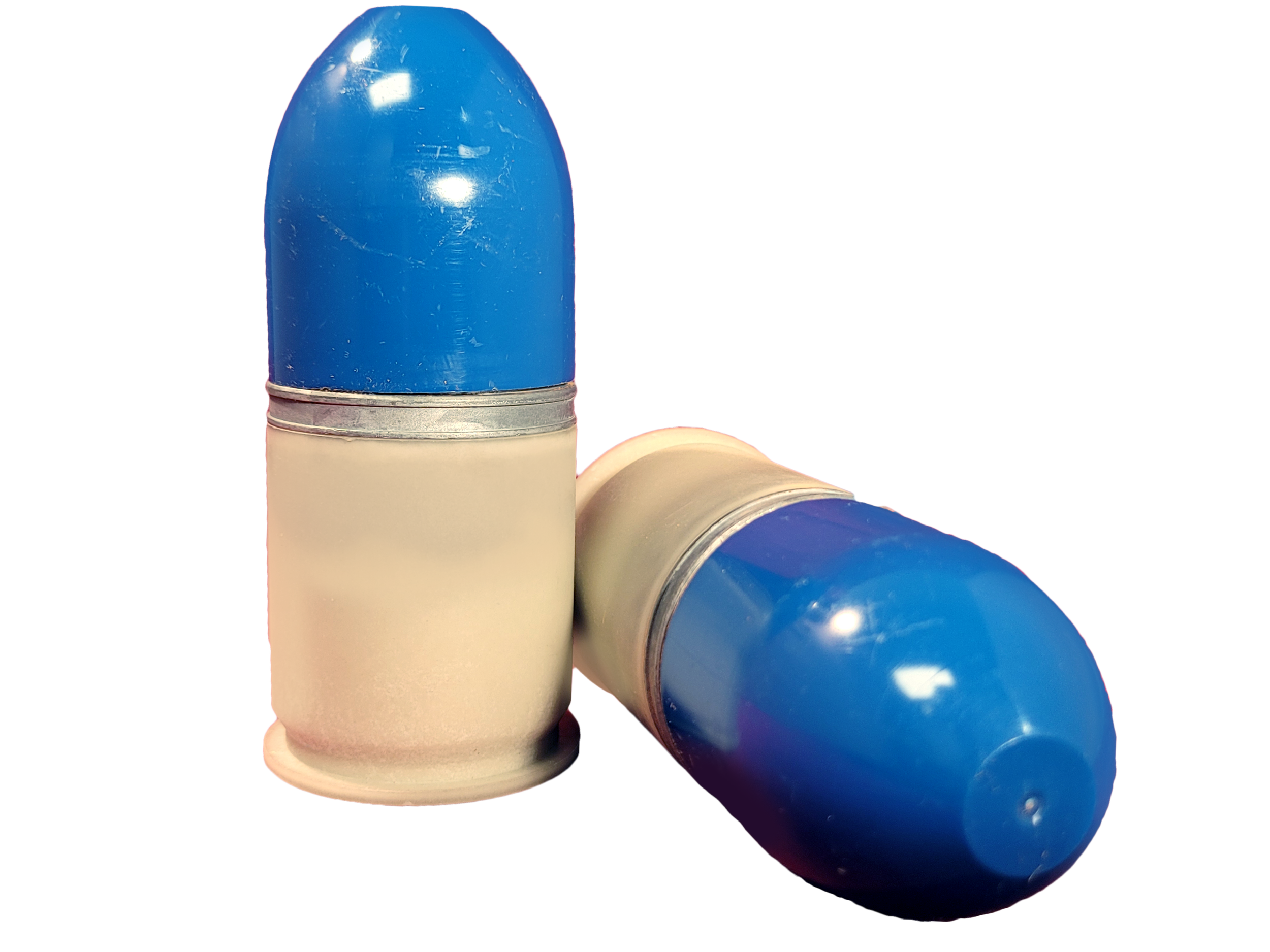

• Appearance: A white to tan plastic M212 base with a blue plastic Ogive/Ojive nose cone

• Function: The M781 is a training round to be used in the M203 or M79 40mm grenade launchers. It is designed to train soldiers to fire the M433 Low Velocity HEDP round. Upon impact of the 40mm M781, the windshield shatters, releasing a orange cloud of signal dye which is loaded in the nose cone.

• Velocity: 240-250 fps

Performance:

• Velocity: 240-250 fps

• Std Dev: 1.8 – 2.8

• Total Weight: 206-209 grams

• Projectile Weight: 172-173 grams

• Body: White Plastic Base (M212), Zinc Single-cavity Cast, Blue Plastic Nose Cone. The majority of the projectile’s weight is from the zinc body. The propellant charge is contained within a 38 S&W case inserted into the M212.

UDC Manufactures M781 for both Government application as well as Commercial sale. If you have more questions about 40mm M781, please contact the defense experts of UDC.
